PCB industry in the future development trend 2019 global FPC output will reach 13.8 billion US dollars

From：定盈电子    Time：时间格式错误!

First, 5G high-speed high-speed evolution, high-frequency circuit board first
1, China's telecommunications electronics industry is relatively good industrial base determines the tremendous potential of high-frequency circuit boards
Policy-driven boost business prospects such as emerging optical communications boom, bringing communications infrastructure, equipment and circuit boards and many other needs. In order to further implement the "Broadband China" strategy, in January 2017, the NDRC and MIIT jointly released the "Three-Year Action Plan for Major Information Infrastructure Projects": In 2016-2018, a total investment of 1.2 trillion yuan is expected in information infrastructure construction , With a total investment of 902.2 billion yuan for 92 key construction projects, including backbone networks, metropolitan area networks, fixed broadband access networks and mobile broadband access networks.
2, high-frequency circuit board will be the fastest growing electronics industry one of the areas

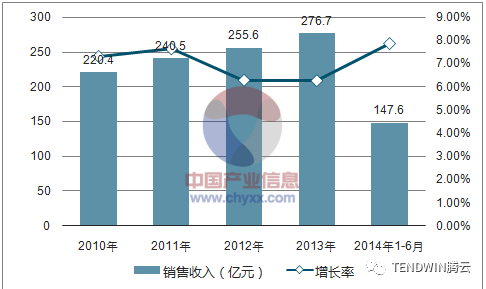

2010-2014 industry sales revenue development

The global PCB industry will continue to grow in the new round of growth cycle. The sudden emergence of more and more innovative application terminal electronic products will provide more market growth points for the global PCB industry. According to forecasts, in 2017 circuit board size will reach 64.6 billion US dollars; of which China accounted for 29.1 billion US dollars share.

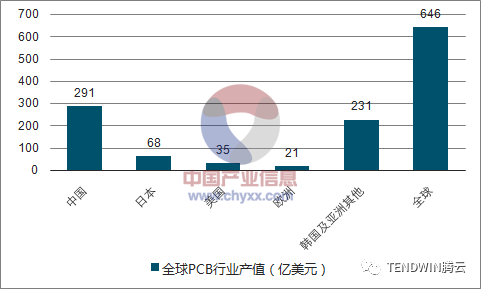

2017 global PCB industry scale

3, the characteristics of the semiconductor line


Large domestic circuit board volume, but the high-end shares and the size of the industry does not match According to data, in 2017 China's printed circuit board industry output was 29.1 billion US dollars; in 2020 reached 35.9 billion.


PCB industry in the next few years will usher in more opportunities for development: First, the continued transfer of industries and the world-renowned PCB companies in China to establish production bases, making China's PCB industry clusters will further highlight the advantages that will also give birth to more Of the local enterprises to grow faster and develop faster and push the technical strength and management level to a new level through the fierce market competition and learning effects.


Second, the development of the seven strategic emerging industries during the 12th Five-Year Plan will provide more opportunities for development and policy support for the development of PCB enterprises in China. Finally, consumption is expected to play a more important role in driving the troika for economic growth Location, the rapid development of domestic consumer market, will further promote the application of the expansion of the market size, and indirectly promote the development of the upstream PCB industry.


According to the agency's forecast, by 2020 China's printed circuit board industry output will reach 35.9 billion US dollars, while the global high-frequency microwave board in 2020 accounted for the overall proportion of PCB will reach 15%, corresponding to China's 5.39 billion US dollars.

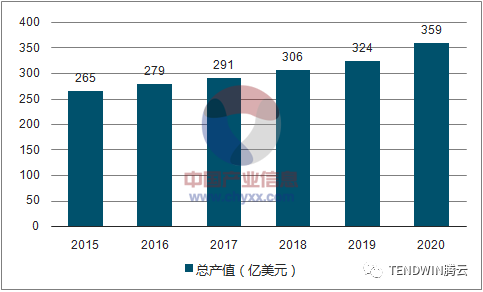

China Printed Circuit Board Industry Output Value Forecast in 15-20 Years

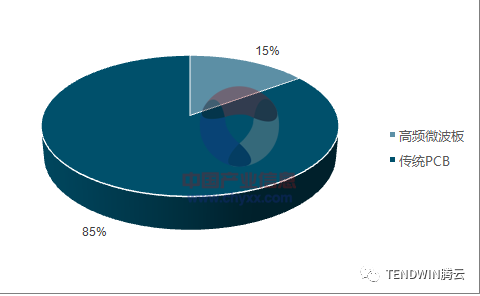

PCB market in 2020 forecast

two
New Process Evolution: Addition Process Leads Next Generation PCB and FPC Manufacturing Process
1, the traditional preparation process for the FPC etching subtraction method


As early as 1936 Dr Paul Eisner invented PCB circuit board production technology, printed circuit board PCB in our life and production process has infiltrated into all aspects, PCB as the most important electronic components, is the support of electronic components, is Electrical components of electrical connections to the carrier.

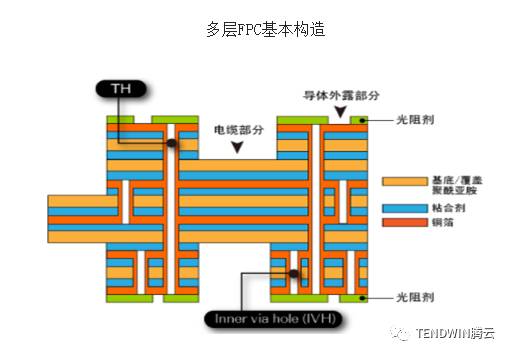

In recent years, with the rapid rise of consumer electronics markets such as smart phones, tablet computers and wearable smart devices, the FPC market of flexible circuit boards has been greatly promoted. Flexible Printed Circuit Board FPC is a highly reliable and excellent flexible printed circuit board made of polyimide or polyester film. It has the advantages of high wiring density, light weight, thin thickness, curved Good foldability features.

According to the statistics, the global PCB output value in 2014 was 57.437 billion U.S. dollars, of which the total output value of flexible circuit board FPC reached 11.476 billion U.S. dollars. Including smart phones, tablet PCs, storage services and automotive electronics applications such as the continuous development of the FPC is expected to 2019 total output will reach 13.832 billion US dollars, a CAGR of about 3.8%. From a global perspective, China, South Korea, Taiwan and Japan are currently the major producing countries.

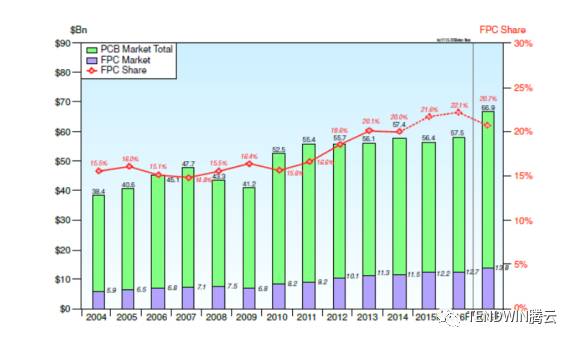

2019 global FPC output will reach 13.8 billion US dollars

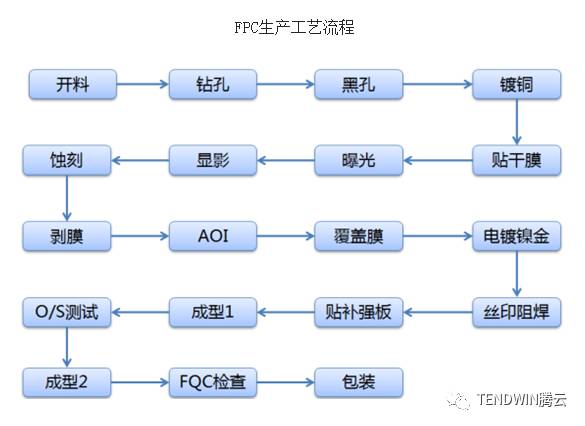

The traditional FPC production process using the PCB PCB's classic preparation method minus the law to manufacture. Subtractive method, also known as etching method, is currently the most important printing technology at home and abroad, in the manufacture of PCB and FPC in the field of large-scale applications. In short, this is the process of producing a desired circuit by etching a non-patterned portion of copper foil over a copper clad laminate by photochemical imaging, screen printing, pattern transfer or plating. At present, as the traditional preparation method of PCB, the process is very mature, and various circuit boards can be made according to the needs. However, the main disadvantages are the serious pollution, the waste of a large amount of copper resources and the complicated process.

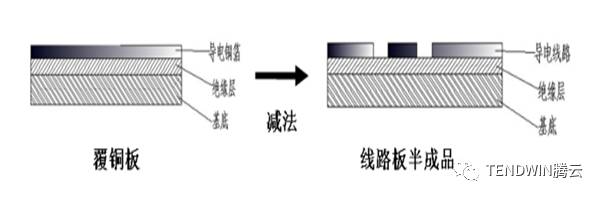

Subtraction into the law diagram

2, Addition Act: Lead the next generation of FPC manufacturing process


Addition method refers to the absence of CCL plastic printed circuit board to silk screen, electroplating or paste and other methods to make conductive graphics on the plastic sheet to form the circuit board. As the circuit is later added to the printed board up, so called addition. Different from the traditional subtraction method, the addition method has the following advantages compared with the conductive path of the addition method:

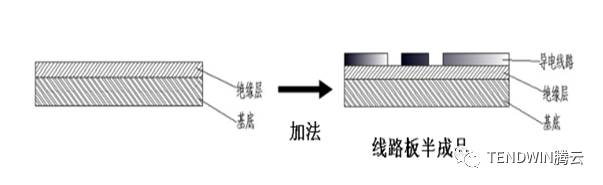

Addition method diagram
